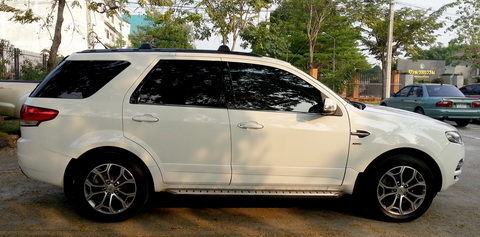

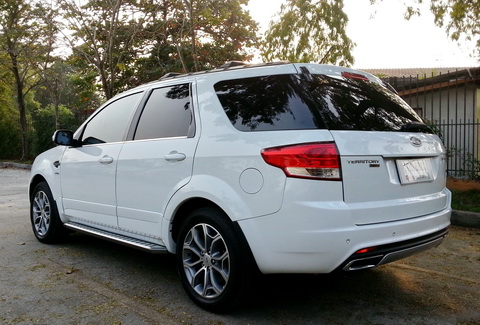

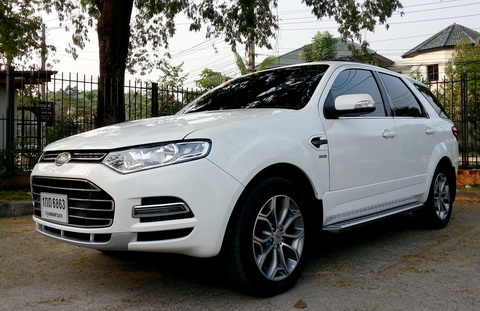

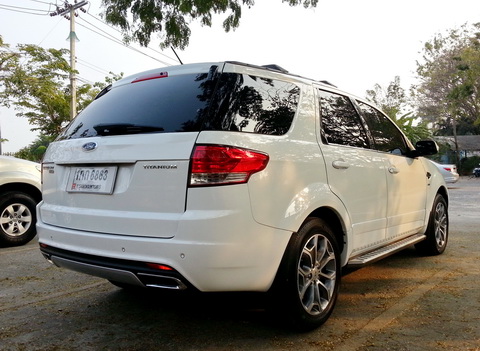

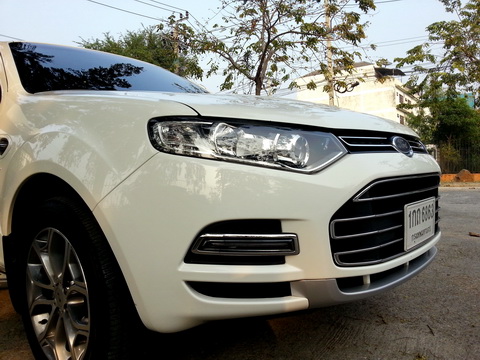

2013 FORD TERRITORY 2.7TDCI (DIESEL) 7 ที่นั่ง สีขาว

Identification data

Production/sales period of cars with this particular specs:

May 2011 - November 2014

Modelyears:

-

Country of origin:

AUS Australia

Make:

Ford (Australia)

Model:

Territory (SX-SY-SZ-series)

2004-

Submodel:

Territory SZ-series AWD

2011-2014

Optional equipment:

EEC segmentation:

J (E) (sport utility cars and off-road vehicles - executive)

Subsegment:

J(E)-4WD (4WD executive sport utility and off-road vehicles)

Class:

mid-size off-road / SUV (sport utility vehicle)

Body style:

sport-utility crossover

Doors:

5

Traction:

4x4 on-demand (front engaged automatically when rear wheels slipping is detected up to 50/50 torque split)

Dimensions & capacities

Length:

4883 mm / 192.2 in

Width:

1898 mm / 74.7 in

Height:

1716 mm / 67.6 in

Wheelbase:

2843 mm / 111.9 in

Front track:

1626 mm / 64 in

Rear track:

1597 mm / 62.9 in

Ground clearance:

175 mm / 6.9 in

Turning circle btw. walls:

Turning circle btw. curbs:

11.4 m / 37.4 ft

Drag coefficient claimed:

Drag coefficient estimated by a-c:

0.38

Legroom:

1st row:

44.2 in / 1122 mm

2nd row:

40 in / 1015 mm

3rd row:

33.8 in / 859 mm

Shoulder room:

1st row:

60.9 in / 1548 mm

2nd row:

60.2 in / 1528 mm

3rd row:

Headroom:

1st row:

42.3 in / 1074 mm

2nd row:

39.6 in / 1006 mm

3rd row:

36.45 in / 926 mm

Hiproom:

1st row:

2nd row:

Claimed EPA passenger volume:

Calculated EPA passenger volume:

121.1 cu ft / 3.43 m3

for two seat rows:

121.1 cu ft / 3.43 m3

Interior length:

Interior width:

Interior height:

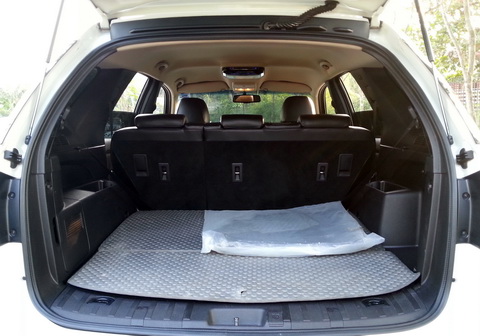

Trunk (cargo) capacity claimed:

Trunk (cargo) capacity SAE:

1153 / / dm3

40.7 / / cu ft

Trunk (cargo) capacity VDA:

Boot length:

Boot length max.:

Boot width:

Boot width min. (between wheel arches):

Boot height:

Loading height:

Approach angle (deg):

22.6

Departure angle (deg):

23.5

Ramp angle (deg):

Weights

Curb weight (without a driver):

2132 kg / 4700 lbs

Weight distribution f/r (%):

Dry weight:

Shipping weight:

Curb weight estimated:

Gross vehicle weight rating GVWR:

Payload:

Payload estimated:

Towing weight:

unbraked:

750 kg / 1653 lbs

braked:

2700 kg / 5952 lbs

Sales markets

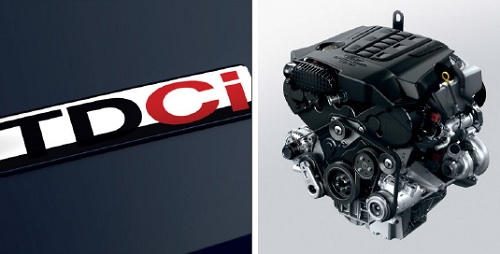

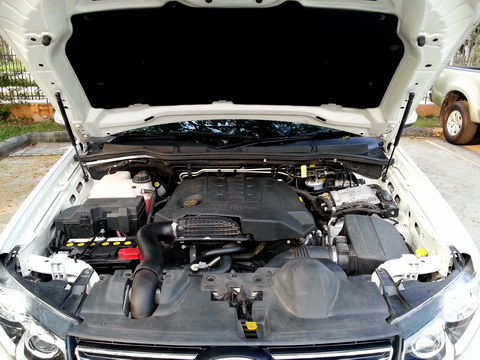

Powertrain

Engine manufacturer:

Jaguar AJ-V6D / PSA DT17 2.7 designed by Ford

Engine type:

diesel

Fuel type:

diesel fuel

Fuel system:

common rail

Charge system:

turbocharger

Valves per cylinder:

4

Valves timing:

Additional features:

DOHC

Emission control:

Emission standard:

Cylinders alignment:

V 6

Displacement:

2720 cm3 / 165.9 cui

Bore:

81 mm / 3.19 in

Stroke:

88 mm / 3.46 in

Compression ratio:

17.3 : 1

Horsepower net:

140 kW / 190 PS / 188 hp (DIN)

/ 4000

Torque net:

440 Nm / 324 ft-lb

/ 1900

Horsepower gross:

Torque gross:

Redline rpm:

Car power to weight rationet:

65.7 watt/kg / 29.8 watt/lb

Car weight to power rationet:

15.2 kg/kW / 11.2 kg/PS / 25 lbs/hp

Fuel capacity:

75 liter / 19.8 U.S. gal / 16.5 imp. gal

Check:
2011 Ford Territory Titanium TDCi AWD Power and Torque Curve

Full performance data, accelerations chart, acceleration on gears, speed range on gears, overtaking factors etc. - click the buttons below:

Drivetrain

Gearbox:

Ford 6R80

Transmission type:

automatic

with manual shift mode (Sequential Sports Shift SSS)

Number of gears:

6

Gear ratios (overall):

I

4.171 (14.43)

II

2.34 (8.1)

III

1.521 (5.26)

IV

1.143 (3.95)

V

0.867 (3)

VI

0.691 (2.39)

VII

()

VIII

()

R

3.4

Speed range

(max speed on gears,

top gear value theor.):

(km/h/mph)

I:

40 / 25

II:

71 / 44

III:

109 / 68

IV:

145 / 90

V:

191 / 119

VI:

240 / 149

VII:

/

VIII:

/

1000rpm speed:

(km/h/mph)

I:

9.3 / 5.8

II:

16.7 / 10.4

III:

25.6 / 15.9

IV:

34.1 / 21.2

V:

45 / 28

VI:

56.4 / 35.1

VII:

/

VIII:

/

Torque converter factor:

Final drive ratio std:

3.46

optional:

Front brakes:

disc ventilated

322 mm / 12.7 in

Rear brakes:

disc ventilated

328 mm / 12.9 in

Standard tires:

P 235/55 R 18

Check:
2011 Ford Territory Titanium TDCi AWD alternate wheel and tire sizes

Performance - Factory claim

Top speed:

0-60 mph (s):

0-100 km/h (s):
